An innovative all-in-one digital Bluetooth Dynamometer/load cell with PPE certification, featuring rapid 1280Hz (<1ms) performance and a 30kN working load limit. It boasts onboard logging capabilities for up to 50 hours of data. Its robust design includes large load eyes and a breaking strength of 90kN, making it an ideal choice for use as a master point in a wide range of rigging applications.
Working Load Limit (WLL) | 30 kN (6600 lbf) |
PPE Load Limit | 25 kN (5500 lbf) |
Min. Breaking Strength (MBS) | 90 kN (19800 lbf) |
Dimensions (L x W x H) | 190 x 90 x 20 mm |
Load Eyes | 60 x 40 mm (R30 D-Shape) |
Weight (incl. Battery) | 520 g (18 oz) |
Operating Temperature | 0° to +40° C (32° to 105° F) |
Relative Operating Humidity | 10% to 80% RH |
Protection Class | IP67 |
Crafted from a single solid block of high-strength aviation-grade aluminum (LY12CZ), this device delivers an impressive 90kN minimum breaking strength (MBS). With no bolts, screws, rings, pistons, or joints to compromise its integrity, it offers unparalleled safety and reliability. Whether left in a rope access rig during work or a highline rig during use, this level of security is invaluable. Independent break tests have demonstrated an astounding 110kN performance.

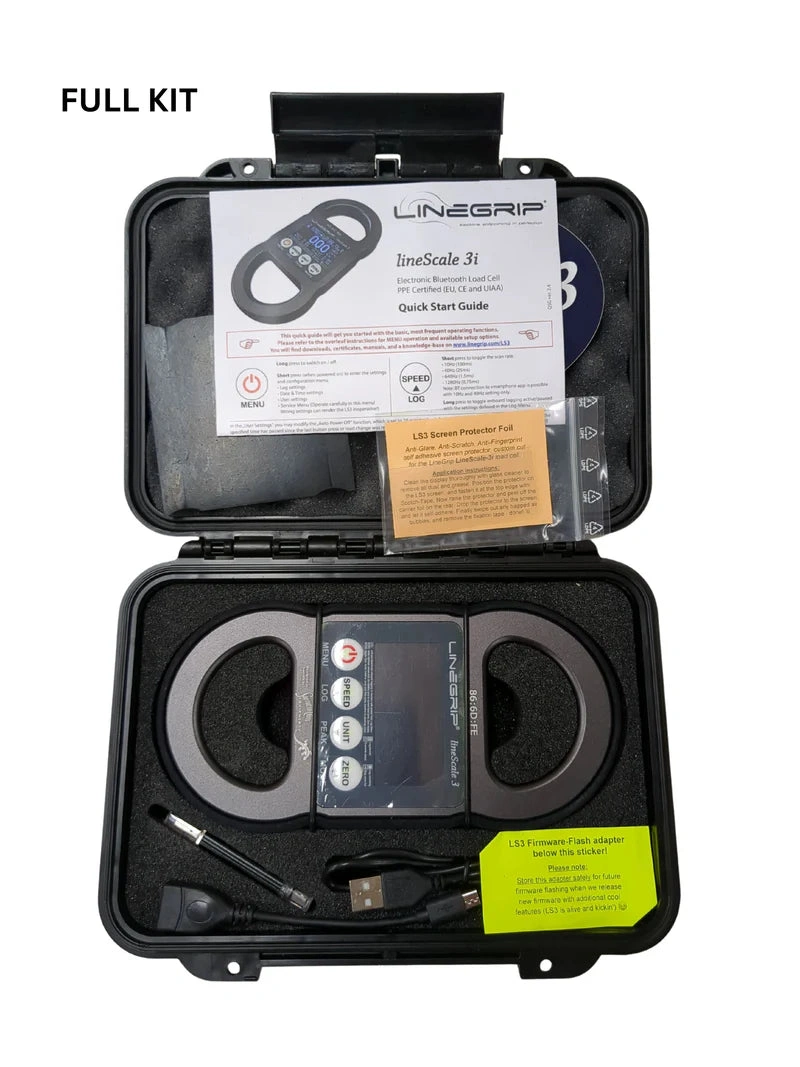

The LineGrip LineScale 3i is available as a base unit, supplied without a case or accessories, or as a full kit with the following accessories
- Nylon Tough Case
- Rubber Edge Protector
- Anti-glare Screen Protector (2pcs)
- 2 port USB
- 7cm USB OTG Cable
Accessories will also be available to purchase separately.
The LineScale-3 is PPE-certified, ensuring confidence in critical situations where safety is paramount. This certification makes it a versatile choice for professionals across various fields, including rope access, high-altitude work, event rigging, arboriculture, rescue operations, stunt rigging, and other PPE-reliant industries.
Measuring Range | -10% to 110% WLL |
Display Units | kgf / lbf / kN |
Maximum Range | 3000 kgf / 6600 lbf / 30 kN |
Display Division (Resolution) | 1 kg / 2 lbf / 0.01 kN |
Measure Error | ±0.25% (@3kN-15kN); max. ±0.75% (@0kN-30kN) |
Sensor Scan Rate (USB) | Fast: 1280 Hz (<1ms); Slow: 640 Hz (1.5ms) |
| Sensor Scan Rate (Bluetooth) | Fast: 40 Hz (25ms); Slow: 10 Hz (100ms) |
Battery Type | 3.7V 1600 mAh rechargeable Lithium battery pack |
Operating Endurance | Min. 30 hours continuous (20h with Bluetooth enabled); up to 60h in power save |
Charging Port | Micro-USB |
Processor | 72MHz Arm® 32-bit Cortex®-M3 CPU, custom-designed PCB |
Bluetooth Interface | Bluetooth BLE 5.0/4.2 |
USB Interface | USB 3.1 Gen. 1×1 |
The LineScale-3 is PPE certified in compliance with Regulation (EU) 2016/425 of the European Parliament and Council, and recommended for use according to PPE-R/11.114 V3:2021(“Protection against falls from a height”).
It also carries the UIAA 130 V1:2021 safety label for load-sharing devices, and the CE 1019 mark
